意大利calzoni液压马达

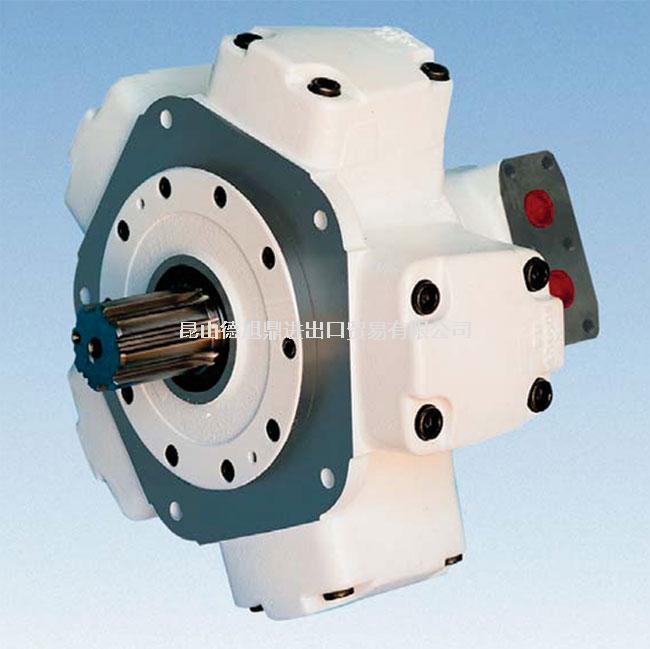

E.T.S.是北美**一家经过工厂培训的Calzoni服务中心。我们为MR & MRE机组提供全套全新的Calzoni电机，以及用于转换或维修您当前的MR、MRE、MRD、MRDE、MRV、MRVE、MRT、MRTE & MRTE机组的备件。E.T.S.拥有***的剥离和装配夹具，以及测试台，可以动态测试从MR33A到MRTE23000Q的所有尺寸的Calzoni电机。这使得E.T.S.拥有与意大利制造商相同的能力，能够提供世界上**的卡尔佐尼汽车维修服务。
| MAIN CHARACTERISTICS |
|---|
| MR MRT MRD MRV Motor Series | MRE MRTE MRDE MRVE Motor Series |
| Peak Pressure | 420 bar (6000 psi) | 360 bar (5075 psi) |
| Max. Working Pressure | 300 bar (4350 psi) | 260 bar (3600 psi) |
| Continuous Working Pressure | 250 bar (3600 psi) | 210 bar (3045 psi) |
| Max A+B Pressure | 400 bar (5800 psi) | 400 bar (5800 psi) |
| Max. Case Drain Pressure | 5 bar (72,5 psi) or 15 bar (217 psi) with high pressure shaft seal | 5 bar (72,5 psi) or 15 bar (217 psi) with high pressure shaft seal |
| Starting Torque | from 90% to 95% of theoritical | from 90% to 95% of theoritical |
| Volumetric Efficiency | up to 98% | up to 98% |
| Total Efficiency | up to 96% | up to 96% |
| Resistance to thermal shocks | Temperature Variation - 50° C (175° F) | Temperature Variation - 50° C (175° F) |
Motor Code
| in3
| cm3
|
|---|
| MR33 | 2,0 | 32,1 |
| MR57 | 3,4 | 56,4 |
| MR73 | 4,4 | 72,6 |
| MR93 | 5,7 | 92,6 |
| MR110 | 6,7 | 109,0 |
| MR125 | 7,6 | 124,7 |
| MR160 | 9,7 | 159,7 |
| MR190 | 11,7 | 191,6 |
| MR200 | 12,2 | 199,2 |
| MR250 | 15,3 | 199,2 |
| MR300 | 18,6 | 304,1 |
| MRE330 | 20,3 | 332,4 |
| MR350 | 21,3 | 349,5 |
| MR450 | 27.6 | 451,6 |
| MRE500 | 30,4 | 497,9 |
| MR600 | 37,1 | 607,9 |
| MR700 | 43,1 | 706,9 |
| MRE800 | 49,1 | 804,2 |
| MR1100 | 68,7 | 1125,8 |
| MRE1400 | 83,6 | 1369,5 |
| MR1600 | 97,5 | 1598,4 |
| MR1800 | 110,4 | 1809,6 |
| MRE2100 | 127,6 | 2091,2 |
| MR2400 | 146,0 | 2393,1 |
| MR2800 | 170,4 | 2792,0 |
| MRE3100 | 189,4 | 3103,7 |
| MR3600 | 221,9 | 3636,8 |
| MR4500 | 274,8 | 4502,7 |
| MRE5400 | 329,6 | 5401,2 |
| MR7000 | 425,2 | 6967,2 |
| MR7000 | 425,2 | 6967,2 |
| MRE8200 | 502,0 | 8226,4 |
