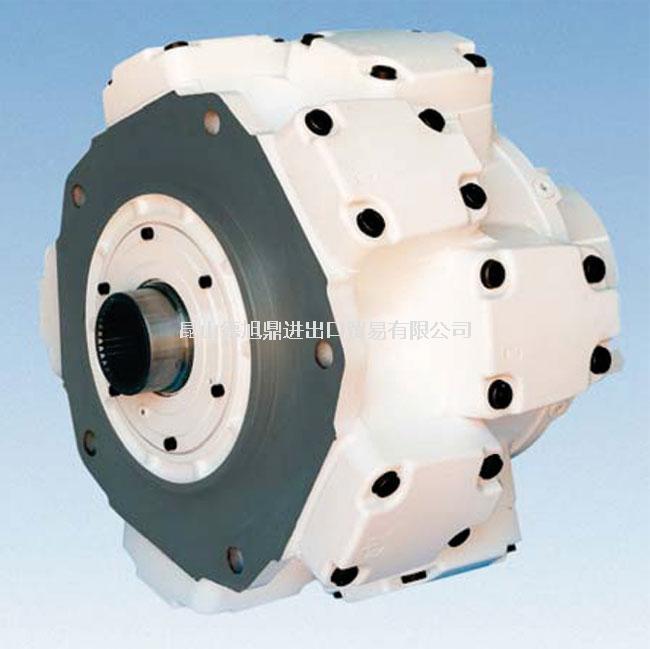

意大利calzoni液压马达
E.T.S.是北美**一家经过工厂培训的Calzoni服务中心。我们为MR & MRE机组提供全套全新的Calzoni电机，以及用于转换或维修您当前的MR、MRE、MRD、MRDE、MRV、MRVE、MRT、MRTE & MRTE机组的备件。E.T.S.拥有***的剥离和装配夹具，以及测试台，可以动态测试从MR33A到MRTE23000Q的所有尺寸的Calzoni电机。这使得E.T.S.拥有与意大利制造商相同的能力，能够提供世界上**的卡尔佐尼汽车维修服务。
| MAIN CHARACTERISTICS | ||
|---|---|---|
| MR MRT MRD MRV Motor Series | MRE MRTE MRDE MRVE Motor Series | |
| Peak Pressure | 420 bar (6000 psi) | 360 bar (5075 psi) |
| Max. Working Pressure | 300 bar (4350 psi) | 260 bar (3600 psi) |
| Continuous Working Pressure | 250 bar (3600 psi) | 210 bar (3045 psi) |
| Max A+B Pressure | 400 bar (5800 psi) | 400 bar (5800 psi) |
| Max. Case Drain Pressure | 5 bar (72,5 psi) or 15 bar (217 psi) with high pressure shaft seal | 5 bar (72,5 psi) or 15 bar (217 psi) with high pressure shaft seal |
| Starting Torque | from 90% to 95% of theoritical | from 90% to 95% of theoritical |
| Volumetric Efficiency | up to 98% | up to 98% |
| Total Efficiency | up to 96% | up to 96% |
| Resistance to thermal shocks | Temperature Variation - 50° C (175° F) | Temperature Variation - 50° C (175° F) |
| Motor Code | in3 | cm3 |
|---|---|---|
| MRT7100 | 433,0 | 7100,4 |
| MRTF7800 | 476,0 | 7808,8 |
| MRTE8500 | 519,0 | 8517,3 |
| MRT9000 | 549,0 | 9005,4 |
| MRTF9900 | 604,0 | 9903,9 |
| MRTE10800 | 659,0 | 10802,4 |
| MRT14000 | 854,0 | 14010,5 |
| MRTF15500 | 946,0 | 15276,5 |
| MRTE16500 | 1.022,7 | 16759,3 |
| MRT17000 | 1.007,0 | 16542,6 |
| MRT18000 | 1.100,0 | 18025,4 |
| MRT19500 | 1.190,0 | 19508,2 |
| MRTF20000 | 1.207,5 | 19788,3 |
| MRTF21500 | 1.312,0 | 21271,1 |
| MRTE23000 | 1.404,0 | 2304,0 |
